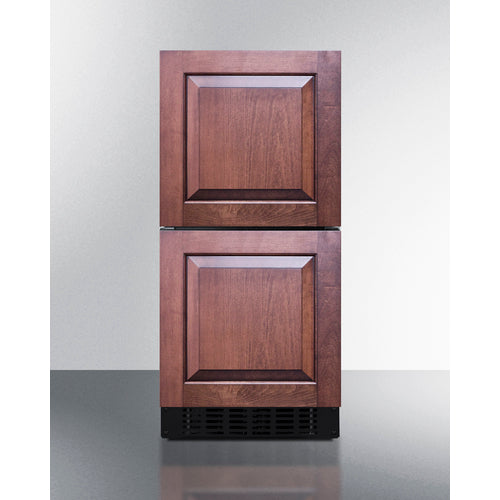

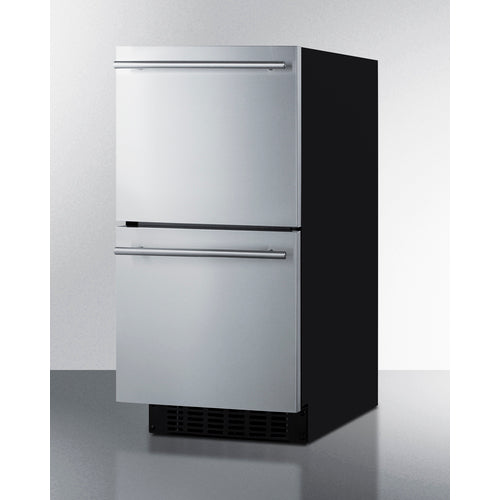

Summit 15" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included) ASDR1524PNR

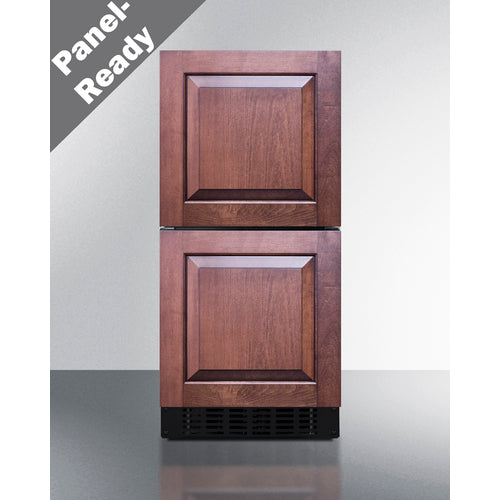

Panel-ready drawers allow you to customize the front to achieve the perfect style in shallow depth cutouts
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers

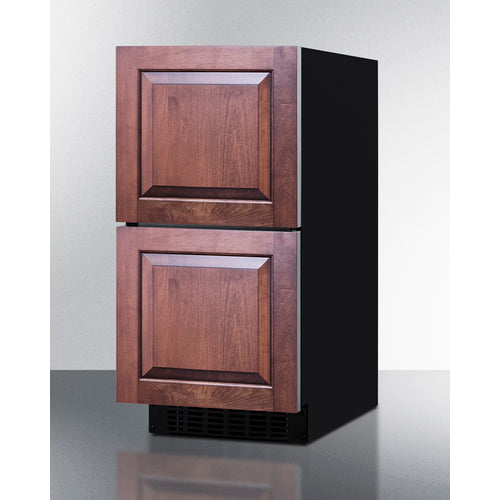

Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry

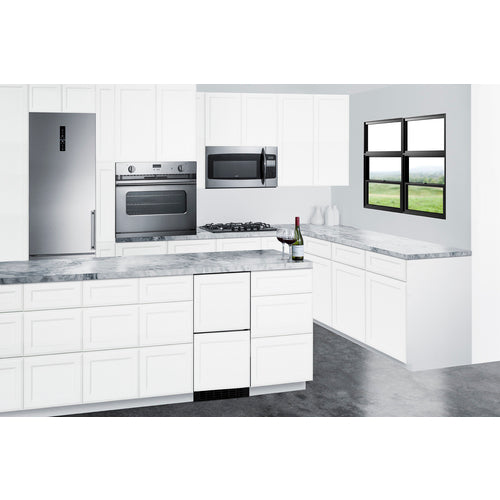

Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Sized just under 32" high to allow installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings

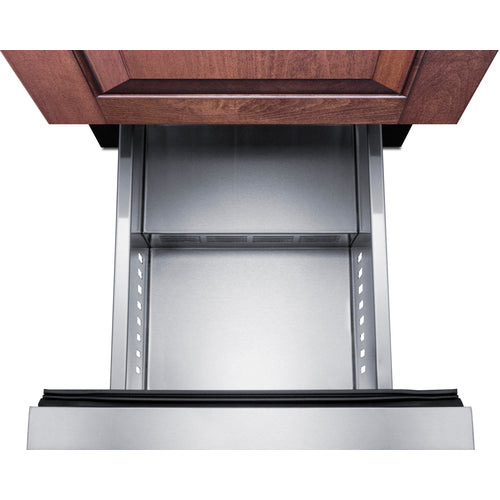

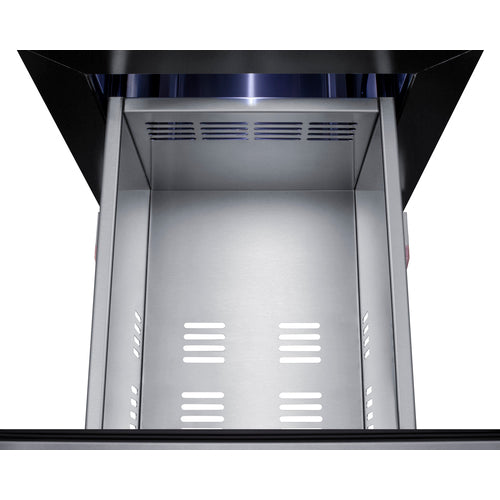

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look
Stainless steel handles add style to any setting
No-frost operation for minimal user maintenance

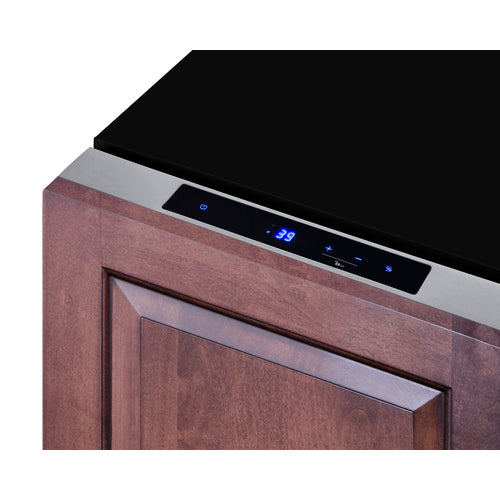

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

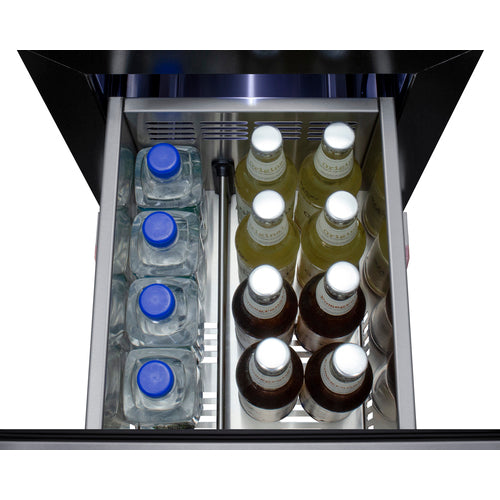

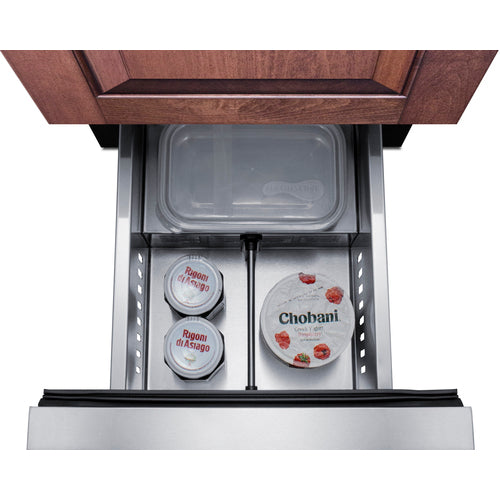

Two adjustable dividers provide flexibility when organizing the interiors
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Audible alarm will sound if either drawer is left open longer than one minute
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Disables digital controls after two minutes of activity for added safety
Unit will restore the most recent temperature settings after losing power
Optional feature disables alarms, interior light, and displays for up to 96 hours
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils for easier cleanability
Allows the unit to be used freestanding
Provides for efficient, even cooling of the entire unit
Unit will retain temperature settings after losing power
Included and recommended for user-installation to reduce the risk of tipping
ETL-S listed to NSF-7 standards to allow use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 17.88" (45 cm) |
| Depth with door at 90° | 29.63" (75 cm) |
| Capacity | 1.7 cu.ft. (48 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088921 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.9 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 8.0" (20 cm) |
| Interior Width 1 | 9.0" (23 cm) |
| Interior Depth 1 | 11.25" (29 cm) |
| Interior Height 2 | 8.0" (20 cm) |
| Interior Width 2 | 9.0" (23 cm) |
| Interior Depth 2 | 11.25" (29 cm) |
|

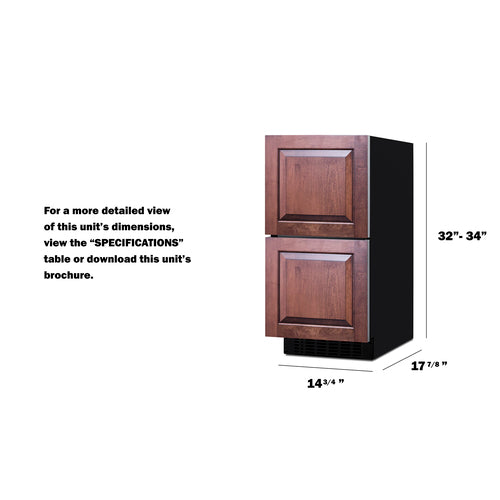

Dimensions
|
|
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 9.0" (23 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
