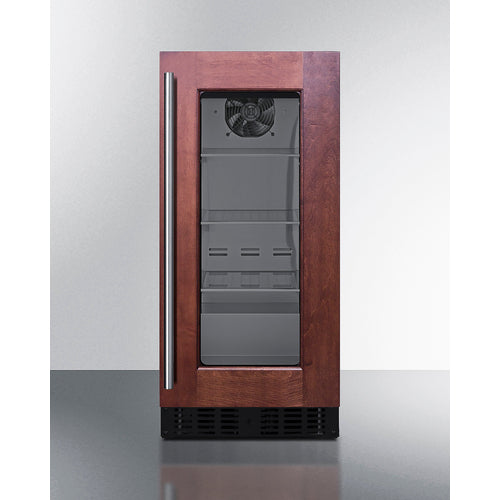

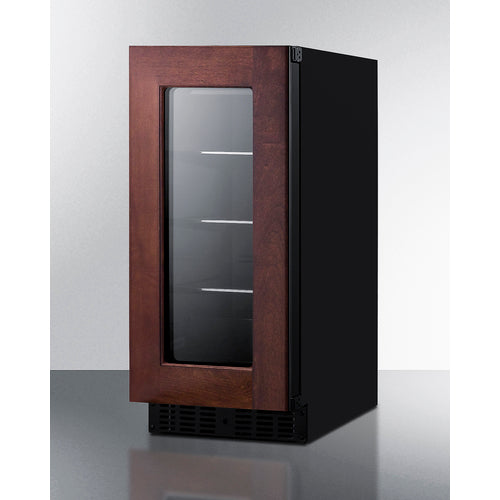

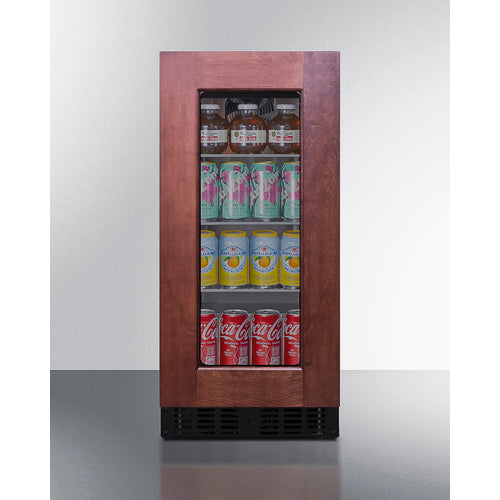

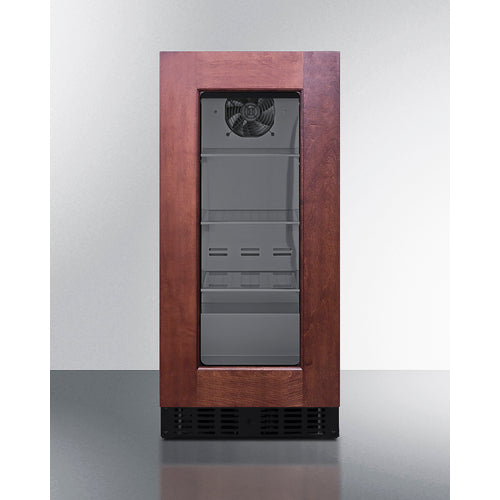

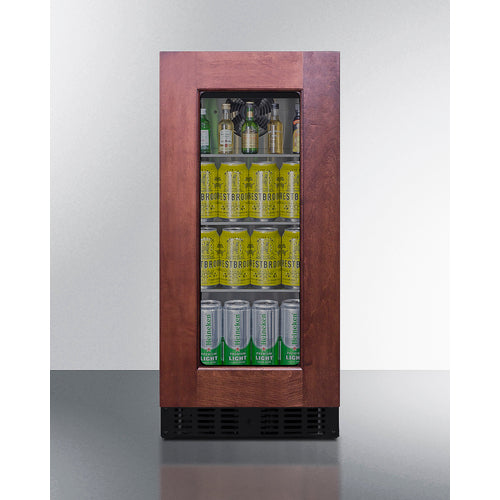

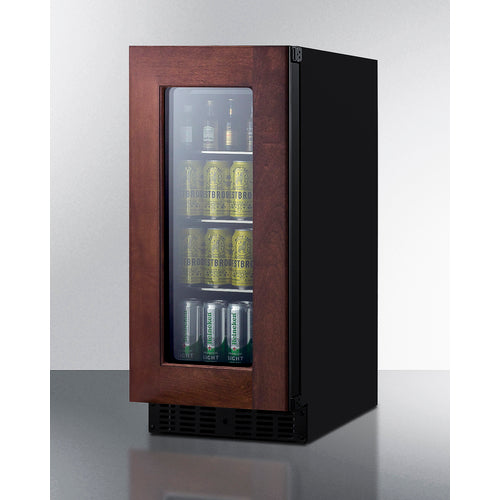

Summit 15" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included) ASDG1521PNR
Just under 18" deep for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutouts
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
1.8 cu.ft. interior for residential or commercial cold storage
Sized at 32" high for use under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Elegant design offers a clear but protected view of your interior

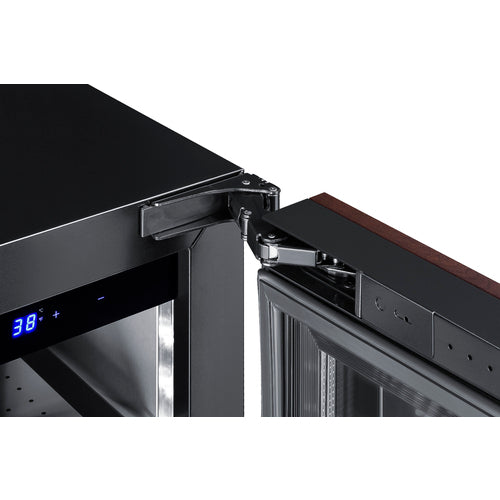

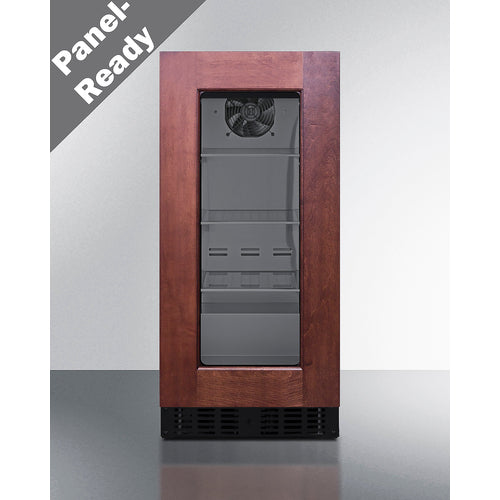

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)

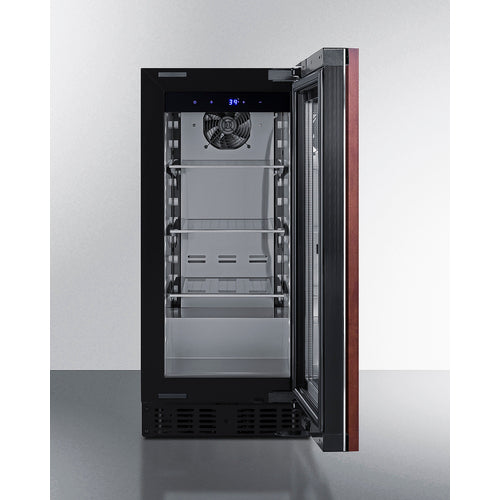

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

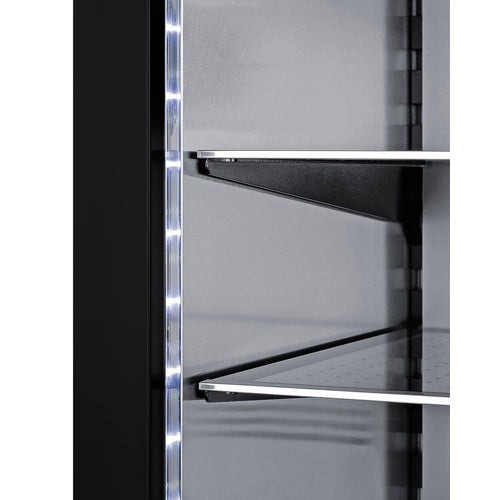

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

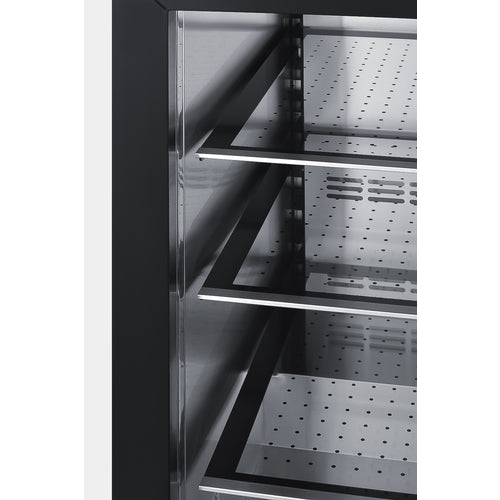

Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the interior temperature rises out of set range
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Smoother opening and a better fit with an integrated European hinge
User-reversible door swing on the refrigerator for added flexibility
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|

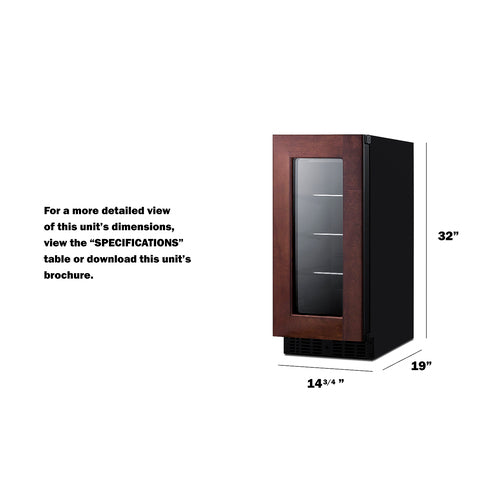

| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077147 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.4 dB |
|
Dimensions
|
|
| Interior Height | 22.5" (57 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
