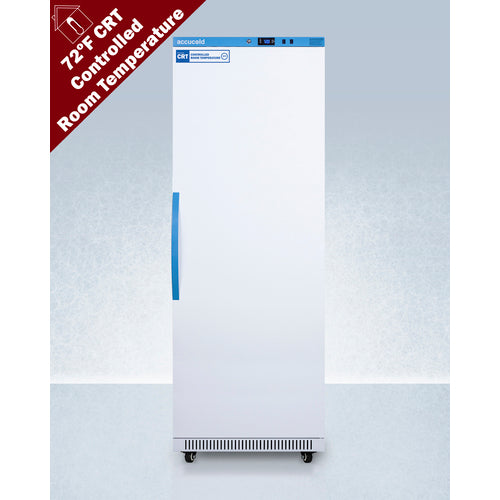

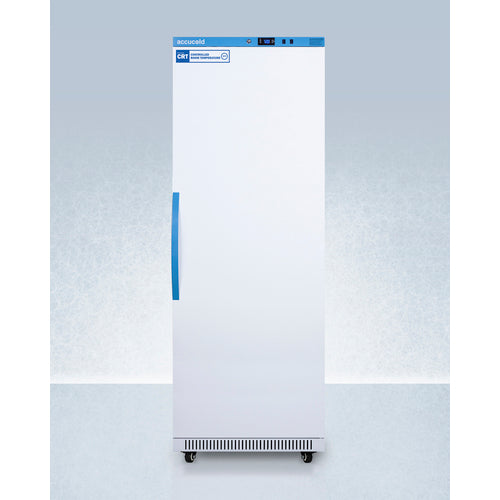

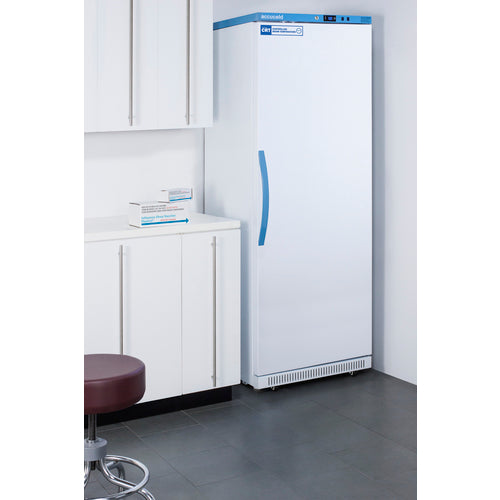

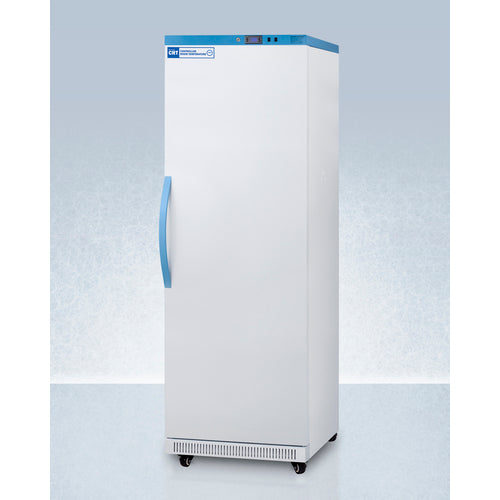

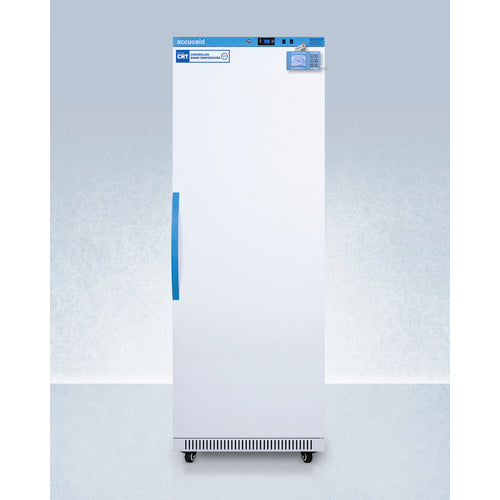

Summit 18 Cu.Ft. Upright Controlled Room Temperature Cabinet ARS18PV-CRT
Controlled Room Temperature (CRT) cabinets are designed and purpose-built for ambient medication and vaccine storage in pharmacy and patient care areas
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
Purpose-built design to store medication, pharmaceuticals, and other sensitive materials at 72ºF
Designed and purpose-built to support manufacturer recommendations for storage of pharmacy, medication, and vaccines within 20° - 25°C (68° - 77°F) as defined by USP <1079> Good Storage and Distribution Practices for Drug Products

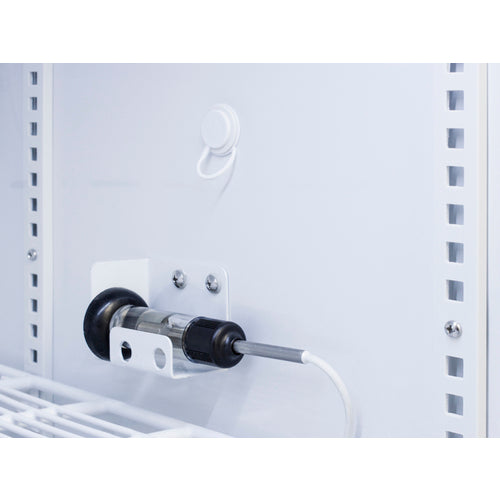

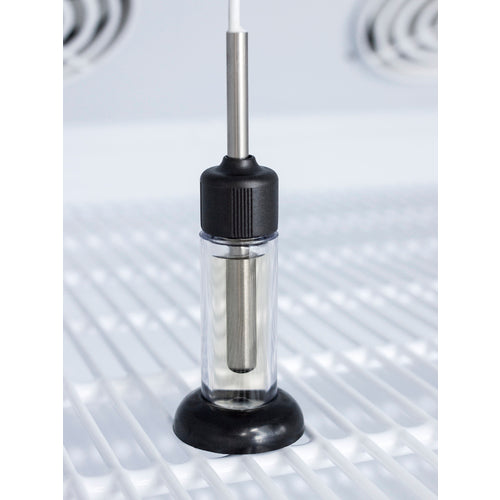

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Designed to maintain a set temperature, even when ambient room temperature is as cold as 68ºF or as high as 86ºF

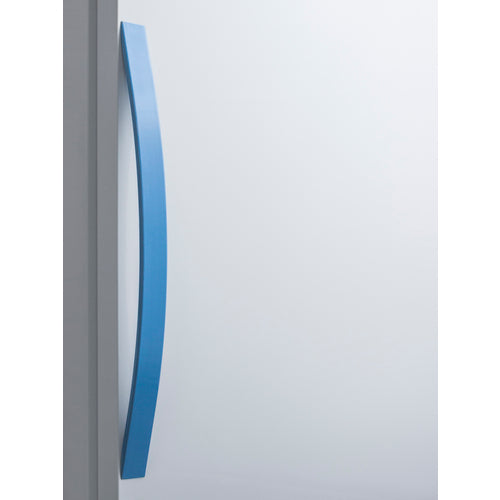

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +68 to +77ºF
Visual and audible alarms alert if the interior temperature rises or falls out of set range

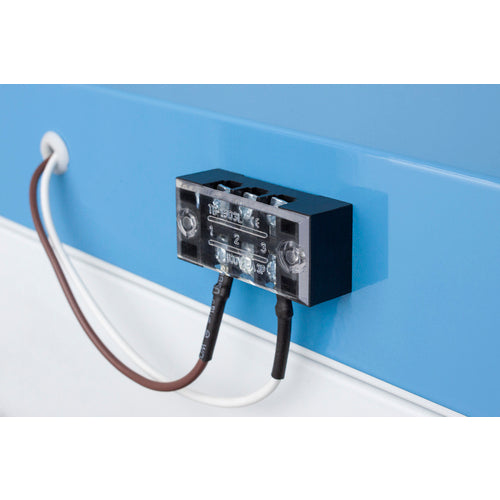

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

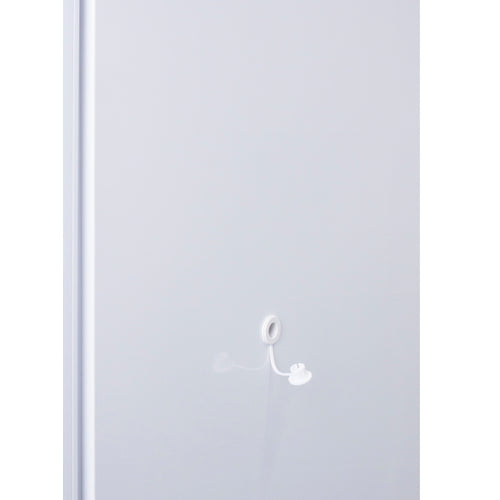

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point

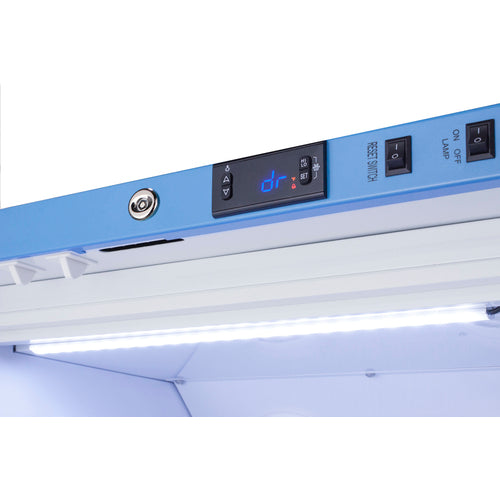

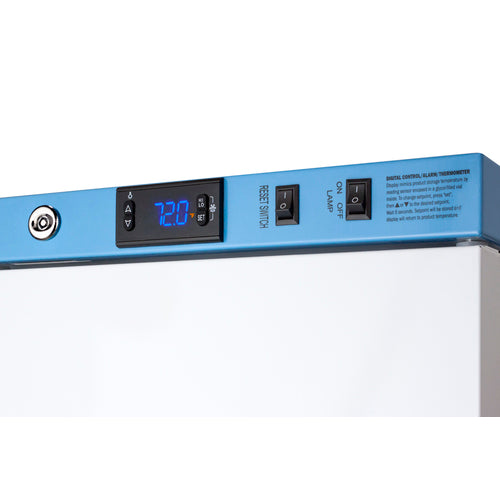

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

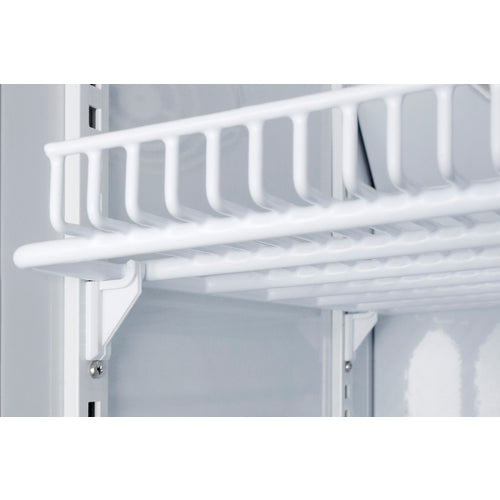

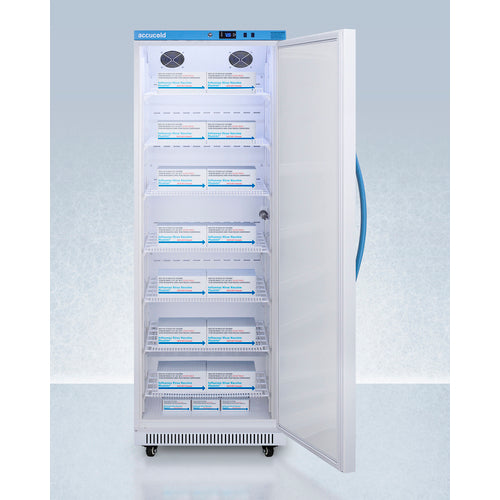

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
User-reversible door swing for added flexibility
Quality door gaskets ensure a tight seal for energy savings and improved performance

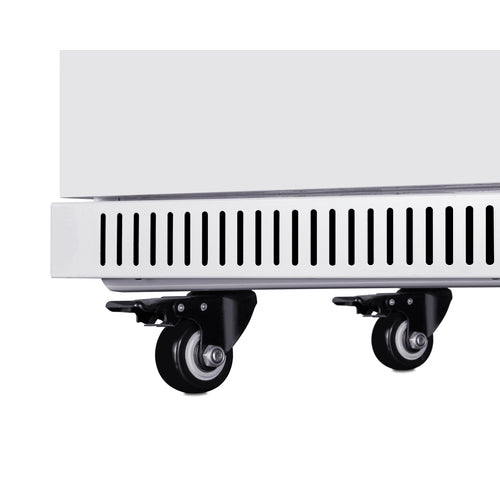

Four pre-installed 3" wheels with brakes ensure smooth mobility, making it easier to clean around and underneath the unit as needed
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Solid and glass door choices available from 1 to 18 cu.ft. Browse the CRT series for more information
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 78.5" (199 cm) |
| Width | 27.5" (70 cm) |
| Width with Door Open | 28.0" (71 cm) |
| Depth | 26.0" (66 cm) |
| Depth with Handle | 27.75" (70 cm) |
| Depth with door at 90° | 52.0" (132 cm) |
| Capacity | 18.0 cu.ft. (510 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 275.0 lbs. (125 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101090504 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |

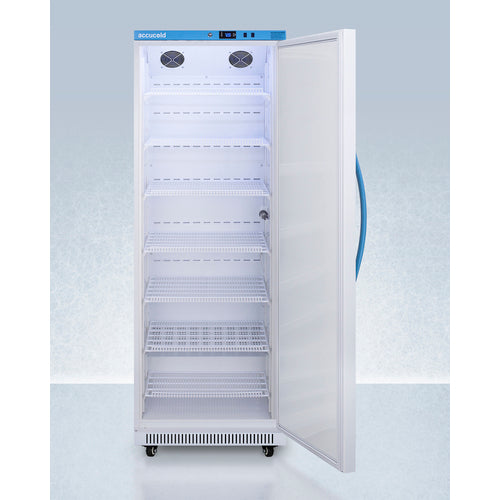

| Shelf Qty | 7 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R290 |
| Refrigerant Amount | 1.75oz. |
| High Side PSI | 280.0 |
| Low Side PSI | 90.0 |
| Wheel Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 68 to 77ºF (preset to 72ºF) |
|
Dimensions
|
|
| Interior Height | 68.5" (174 cm) |
| Interior Width | 24.13" (61 cm) |
| Interior Depth | 18.75" (48 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 24.13" (61 cm) |
| Compressor Step Depth | 6.5" (17 cm) |
