Summit 20" Wide Built-In Commercial All-Freezer, ADA Compliant SCF505SSTBADA
Commercially listed to NSF-7 standards, with a versatile design for built-in or freestanding use
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
ETL-S listed to ANSI-NSF Standard 7 for commercial use
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter

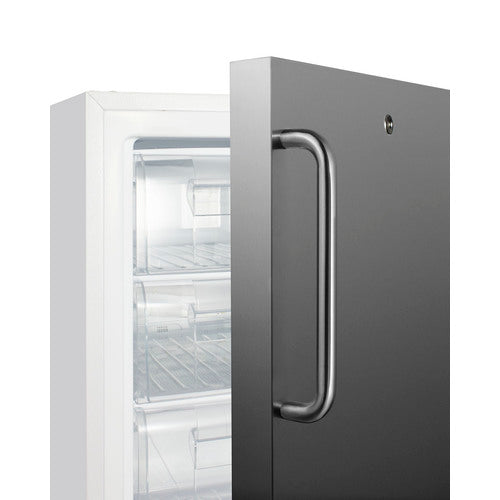

Curved handle in brushed stainless steel offer an easier grip and attractive style
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

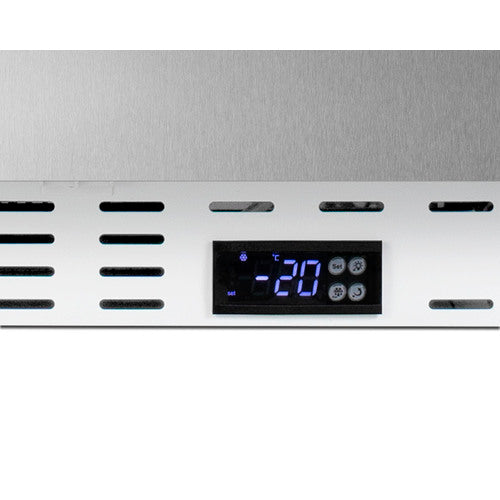

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

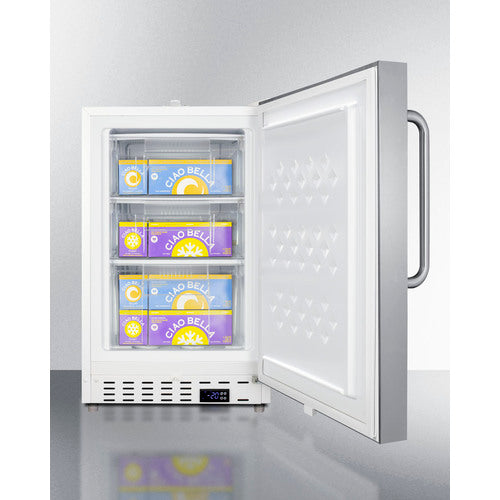

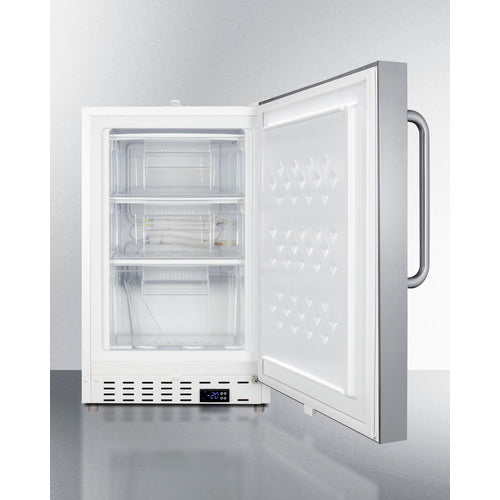

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute
Secure three-pronged cord offers a tighter fit in wall sockets
More temperature stability with an energy efficient manual defrost system
Temperature remains more stable with a static cooling system
User-reversible stainless steel door for added flexibility to best accommodate your setting
Space-saving design that offers easier cleanability
Quality door gaskets ensure a tight seal for energy savings and improved performance
This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
Allows the unit to be freestanding
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086149 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
