Summit 24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVCSS
32" height fits under lower ADA compliant counters, with a French door swing for a dramatic presentation
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features

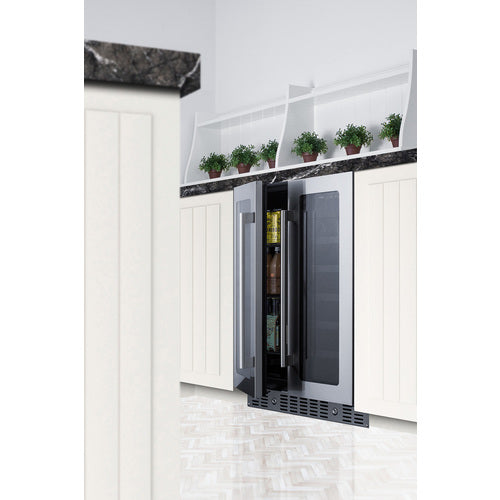

Sized at just 32" high for installation under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
Leveling legs can raise the unit to up to 33.5" for more standardized counters
Glass is framed by seamless 304 grade stainless steel
Exterior cabinet features a 304 grade stainless steel wrapped surface

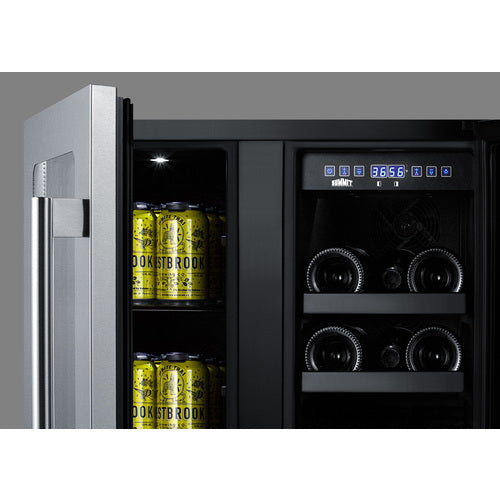

Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit

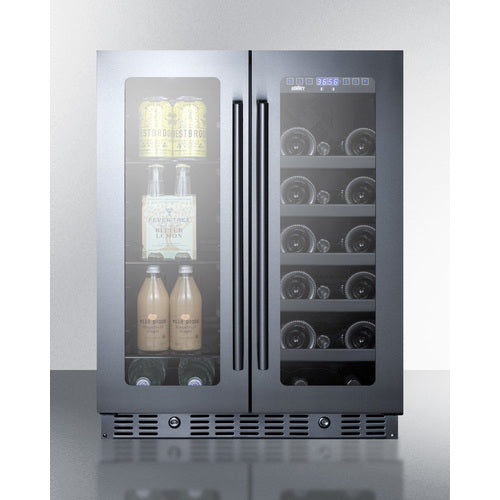

Independent zones let you store beverages in the left compartment and wine in the right
Each door includes a keyed lock for optional security

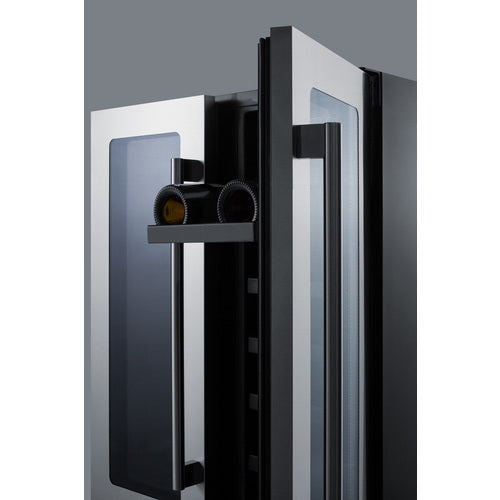

Wine zone includes size adjustable wooden shelves in a modern jet black finish
Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
Attractive and energy efficient LED lighting offers an elegant presentation
Reduced user maintenance with automatic defrost operation
Internal fans ensure both interiors are evenly cooled from top to bottom
Two side-by-side doors with French door opening
Completes the professional look down to the toe kick
Audibly alerts if the interior temperature rises out of the recommended wine storage range
Audible alarm will sound if the doors are left ajar for over 60 seconds
Allows you to disable certain electrical functions for up to 48 hours for periods of observance
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design with easier cleanability
Door hinge adds no additional height, making it easier to install under a counter

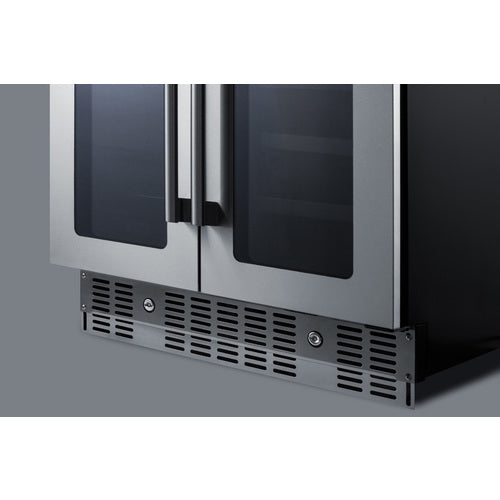

Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Allows the unit to be used freestanding
Environmentally friendly design does not contain ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 33.0" (84 cm) |
| Capacity | 4.6 cu.ft. (130 L) |
| Bottles | 21 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101061467 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Reversible | No |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass and Wood |
| Shelf Qty | 8 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.38" (64 cm) |
| Interior Width 1 | 8.38" (21 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 8.38" (21 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF |
| Interior Height 2 | 25.38" (64 cm) |
| Interior Width 2 | 8.38" (21 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
