Summit 24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included) ALFZ53IF
Designed to fit under lower ADA compliant counters, with a frost-free cooling system for minimum user maintenance
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
24" wide frost-free freezer sized to fit under lower ADA compliant counters
32" height allows easy installation under lower ADA compliant counters
Make the best use of space by installing your freezer under the counter and flush with other cabinets

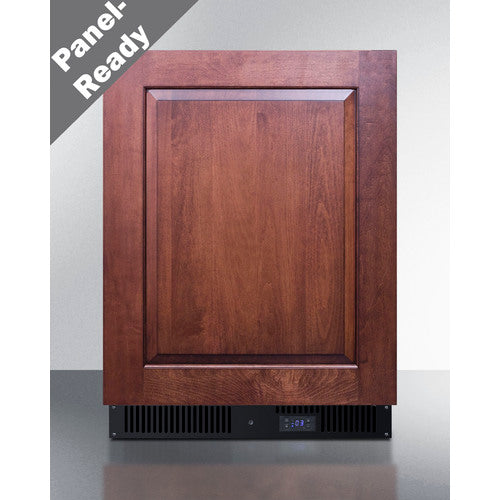

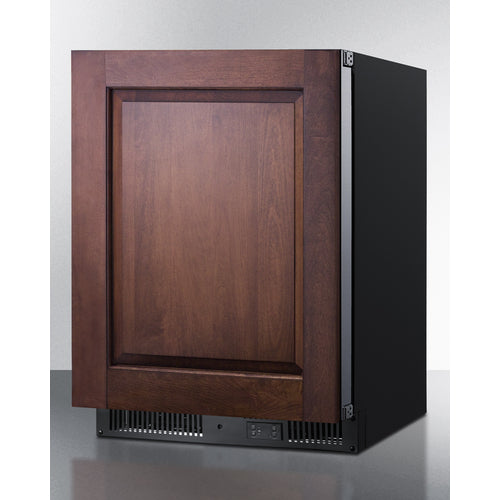

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
No-frost convenience eliminates the need to manually defrost the unit
Electronic controls offer easy and intuitive temperature management

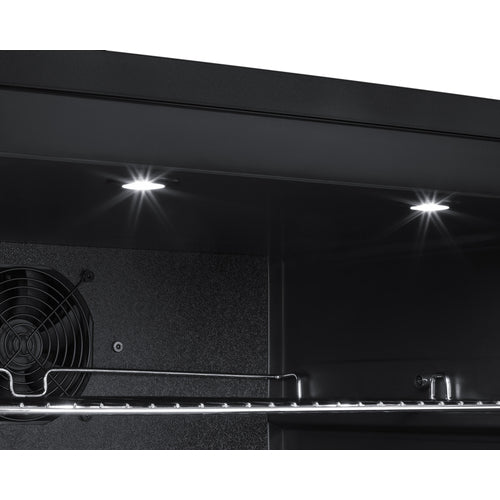

Elegant lighting with an on/off switch located on the control panel
Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order

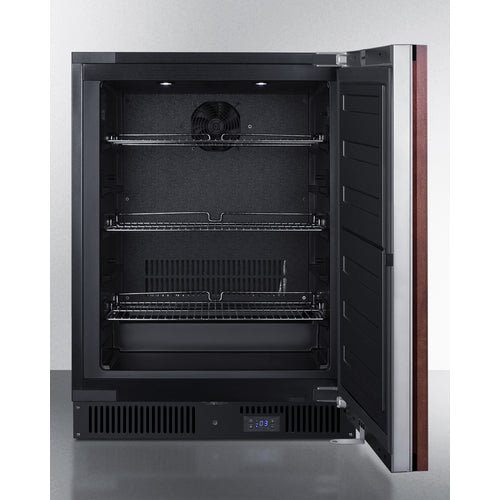

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Audible alarm will sound if the door is left open longer than one minute
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils for easier cleanability
Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards
Allows the freezer to be used as a freestanding model
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088037 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
