Summit 24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIPLUS2ADA

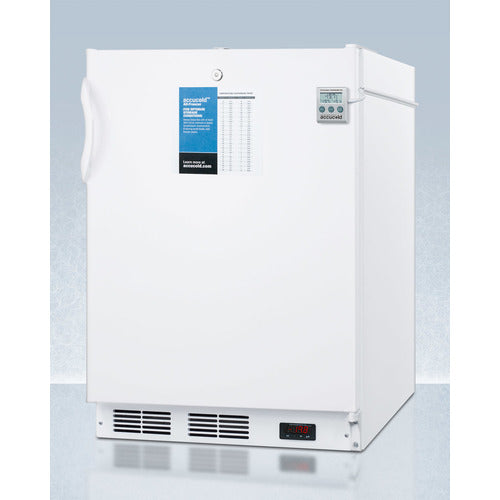

NIST calibrated thermometer with current and high/low temperature readout
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
32" high to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
Keyed lock for secure interior
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature

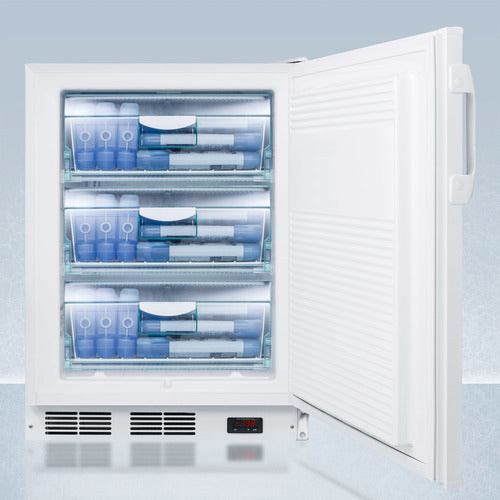

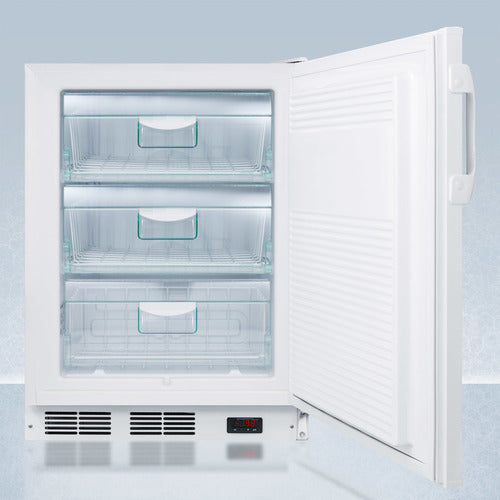

Clear baskets for convenient and separated storage
Low temperature capability ideal for certain sensitive items
Electronic controls located in the front kickplate for easy and intuitive temperature management
Quality door gaskets ensure a tight seal for energy savings and improved performance
Designed to ensure a sufficiently insulated interior
ETL and ETL-C listed for North American sales
Pair with FF6LBIPLUS2ADA for a complete ADA compliant undercounter set
Allows the unit to be used freestanding
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Environmentally friendly design without ozone-damaging chemicals
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101058030 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Shelf Type | Glass |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | -12ºC to -25ºC |
