Summit 24" Wide Built-In Refrigerator-Freezer, ADA Compliant CT663BKCSSADA
Made in Europe with a unique dual evaporator system to ensure better cooling in each section
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
32" high to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
Less than 24" wide with a generous storage capacity

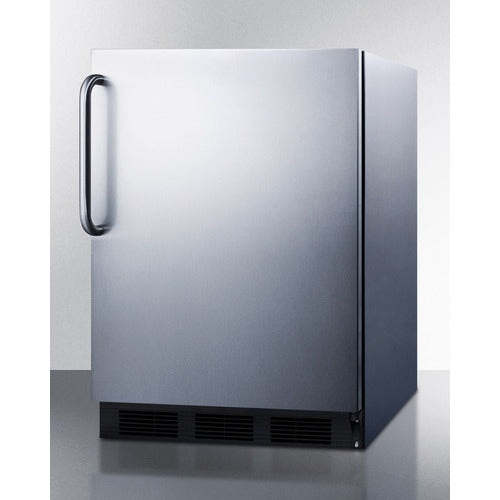

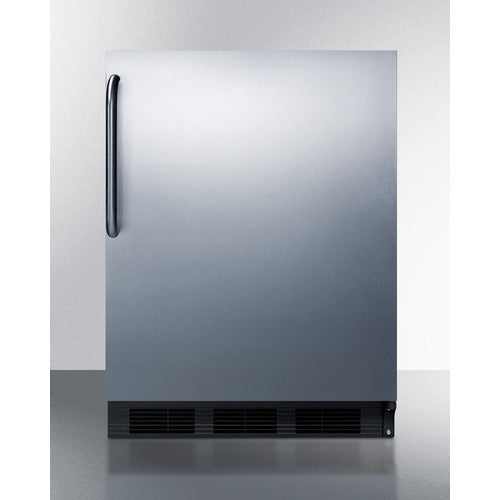

Fully wrapped in 304 grade stainless steel
Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

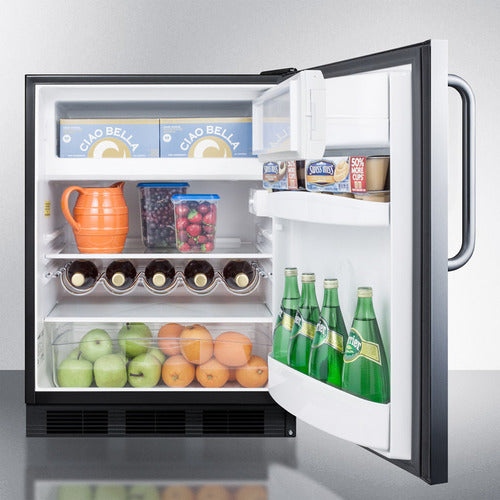

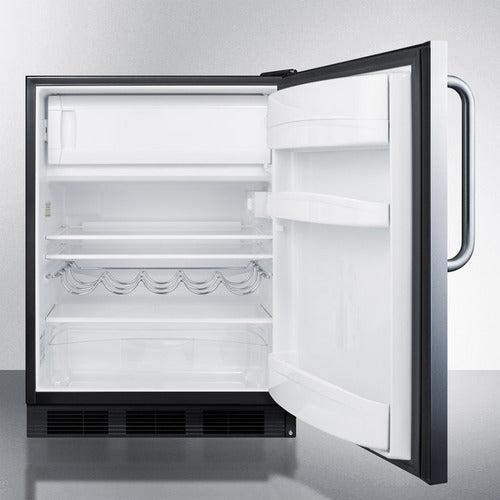

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Store tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Automatically illuminates when you open the door
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Dial thermostat located inside for easy temperature management
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
Overview
|
|
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.38" (82 cm) |
Width | 23.75" (60 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 25.25" (64 cm) |
Depth with door at 90° | 45.38" (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 365.0kWh/year |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101068657 |
Refrigerator-Freezer
|
|
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Wine Bottle Shelving | Yes |
Interior Light | Yes |
Refrigerator - Interior Height | 18.0" (46 cm) |
Refrigerator - Interior Width | 21.0" (53 cm) |
Refrigerator - Interior Depth | 18.0" (46 cm) |
Refrigerator - Capacity | 4.5 cu.ft |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 2 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.25" (13 cm) |
Freezer - Interior Width | 19.0" (48 cm) |
Freezer - Interior Depth | 11.5" (29 cm) |
Freezer - Capacity | 0.6 cu.ft |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 4 |
Compressor Step Height | 5.5" (14 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 6.0" (15 cm) |
