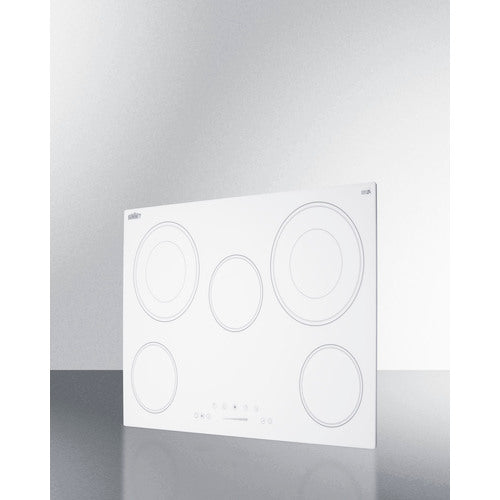

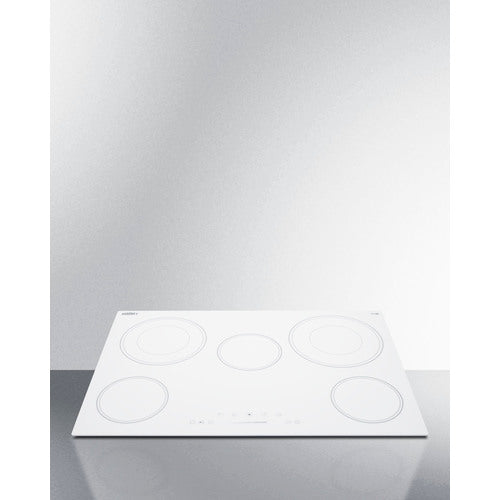

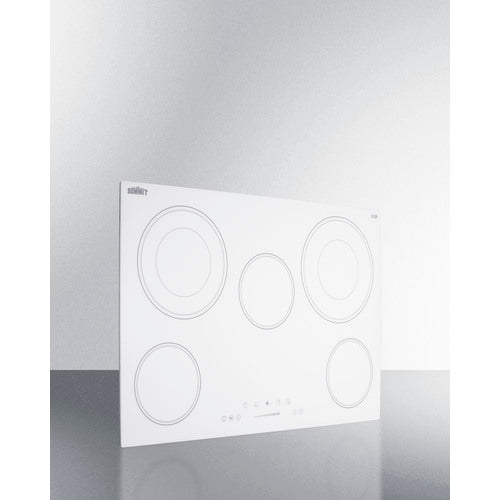

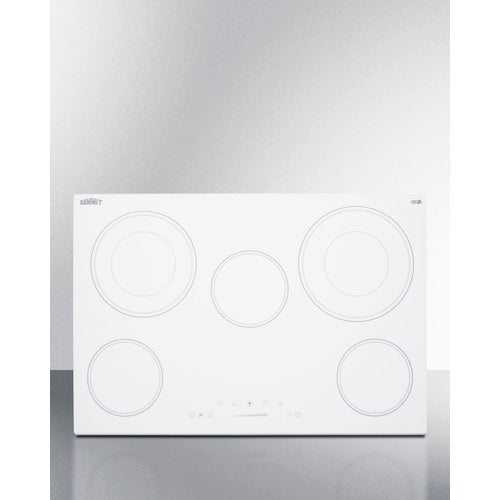

Summit 30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
Touch controls for intuitive cooking, with two extra large dual ring elements to accommodate larger sized cookware
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
Designed to fit common 29 1/2" x 19 5/8" counter cutouts
Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish
Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
Left rear 2200W element is 9" in diameter to handle larger cooking vessels
Front left and front right burners are 6.5" in diameter to meet most cooking needs
Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
Easy operation with a digital control panel and digital display conveniently centered upfront
Select and adjust your heating levels at the touch of a button
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
Indicator shows when the surface is still hot to touch
Upfront controls meet ADA guidelines for easier accessibilty
Safety feature lets you lock the cooktop to prevent unsupervised heating
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
Requires professional hardwired installation (cord not included)
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 2.13" (5 cm) |
| Width | 30.25" (77 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 30.0 |
| Voltage/Frequency | 240 V AC/60 Hz |
| Weight | 28.0 lbs. (13 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101077550 |
|
Electric Cooktop
|
|
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 5 |
| Controls | Digital |
| Cooking Timer | Yes |
| Countertop Cutout Height | 3.2" (8 cm) |
| Countertop Cutout Width | 29.5" (75 cm) |
| Countertop Cutout Depth | 19.63" (50 cm) |
| Element #1 Size | 6.5" (17 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 9.0" (23 cm) |
| Element #2 Wattage | 2200.0 |
| Element #3 Size | 6.5" (17 cm) |
| Element #3 Wattage | 100.0 |
| Element #4 Size | 9.75" (25 cm) |
| Element #4 Wattage | 2500.0 |
| Element #5 Size | 6.5" (17 cm) |
| Element #5 Wattage | 1200.0 |
| Power Cord Included | No |
