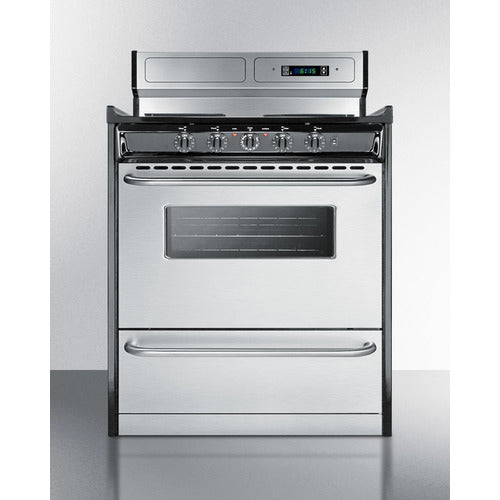

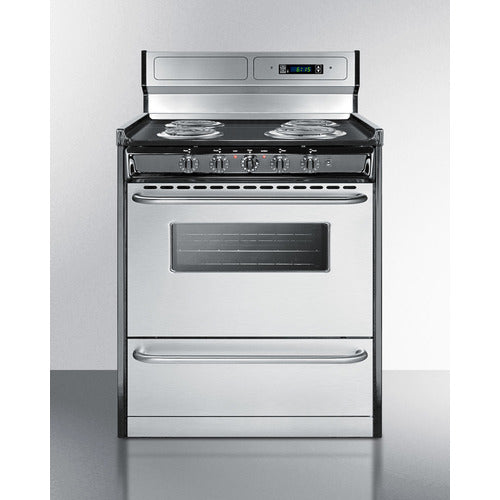

Summit 30" Wide Electric Coil Range TEM230BKWY
Made in the USA
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
30" wide 220V electric range with coil elements and a full-sized oven
Designed and constructed domestically
Standard size ideal for most kitchens
Shallower fit is ideal for L-shaped and galley kitchens
Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
Curved handles in brushed stainless steel offer an easier grip in attractive style
Three standard 6" 1500W and one large 8" 2400W element
Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
Each coil element includes a removable chrome pan for easier cleaning
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
8" high backguard helps to protect your walls from spills and splashes
Backguard includes time readout
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Smart design limits the depth and protects adjacent cabinets
Solid construction built to hold up to everyday use
Allows for easier cleaning as needed
Two-piece porcelain broiler tray with grease well
Included for user installation to help prevent tipping
Compatible with standard 40 amp 3 or 4-wire range cords
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 44.0" (112 cm) |
| Width | 30.0" (76 cm) |
| Depth | 24.0" (61 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 160.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101012902 |
|
Electric Range
|
|
| Oven Capacity | 3.7 cu.ft. (105 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1500.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1500.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1500.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 2400.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
