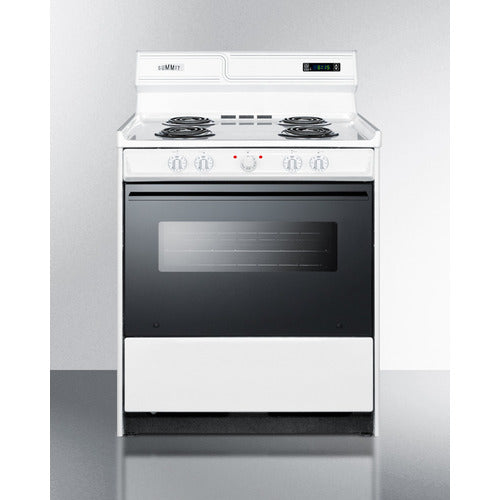

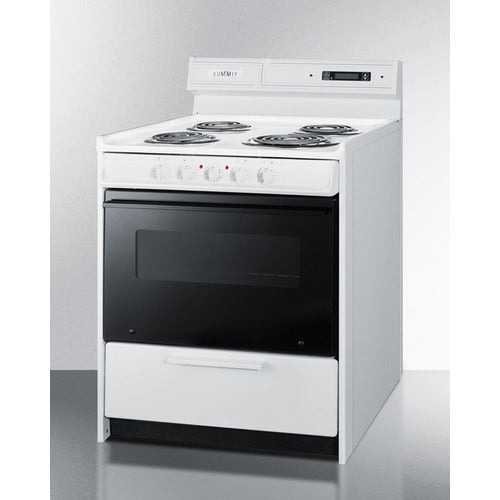

Summit 30" Wide Electric Coil Top Range WEM230DK

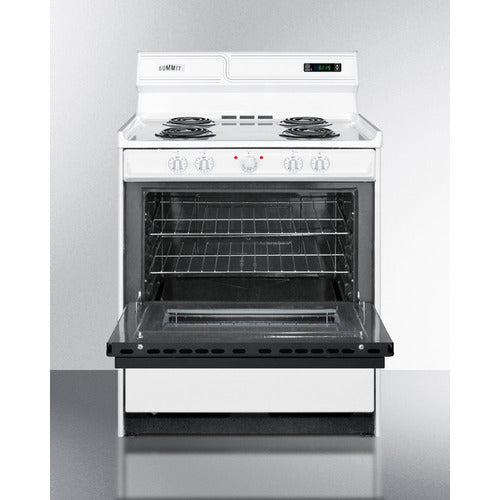

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WEM230DK is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The black glass oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM230DK comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.

Overview
Height of Cabinet	44.0" (112 cm)
Width	30.0" (76 cm)
Depth	24.0" (61 cm)
Door	Black
Cabinet	White
US Electrical Safety	CSA
Voltage/Frequency	220 V AC/60 Hz
Weight	175.0 lbs. (79 kg)
Parts & Labor Warranty	1 Year
UPC	761101007533
Electric Range
Oven Capacity	3.7 cu.ft. (105 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	675.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	950.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Backguard	Yes
Backguard Display	Yes
Cleaning Type	Manual
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	24.0" (61 cm)
Oven Interior Depth	19.0" (48 cm)
Storage Compartment	Yes
Broiler Location	Inside Oven
Oven Door	Black Glass
