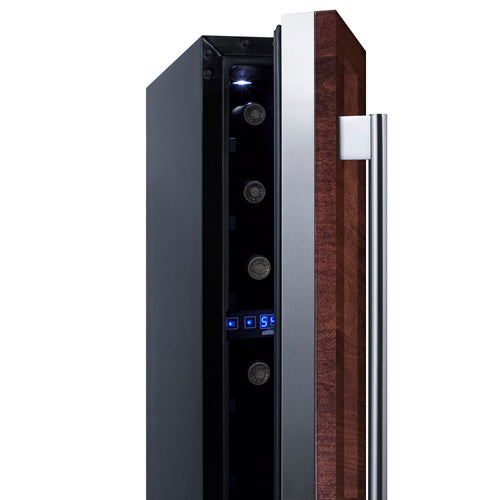

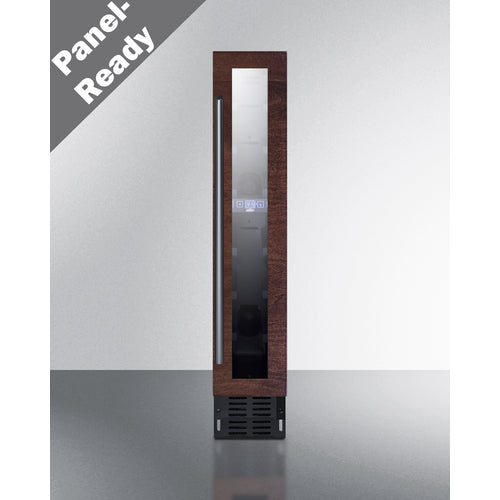

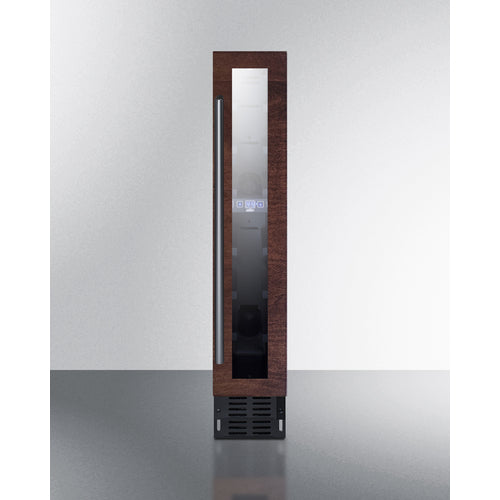

Summit 6" Wide Built-In Wine Cellar (Panel Not Included) SWC007H34PNR
Panel-ready door trim lets you seamlessly integrate refrigerated wine storage into a 6" wide undercounter space
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.
Features
Single zone wine cellar sized for built-in installation in 6" wide spaces
Specialized hinges allow you to install an overlay panel over the door trim to create a custom look that matches adjacent cabinetry (panel size: 28 1/8" H x 5 5/8" W at 3/4" thickness)
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center

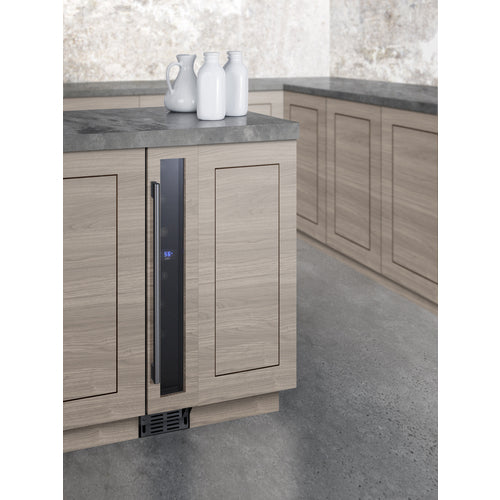

Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Double pane tempered glass provides a full display of your collection
Electronic controls for precise temperature management
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt
Temperature readout can be shown in Celsius or Fahrenheit
Provides an attractive and efficient bottle display
Reduced maintenance and steady temperature performance
Interior fan helps to ensure the temperature is evenly distributed
Audible alarm will sound if the door is left ajar for over 60 seconds
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain last temperature settings in the event of a power failure
Flat design offers added space savings by requiring no extra depth to plug the unit in
Space saving design with easier cleanability
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Runs at under 34 dB for a quiet performance in any setting
Compressor-based operation to ensure reliable temperature performance
For this unit with the door opening from the other side, see model SWC007H34PNRLHD
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specification
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 5.88" (15 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101146775 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
