Harvia M3 Wood-Burning Stove Kit BK
M3 Stove, Protective Bedding, Sheath, Chimney Kit, Stones
In Stock & Ready to Ship. Buy with confidence.
All orders are shipped within 1-2 business days. Product ETA 5-7 business days. See our Price Match Guarantee Policy.

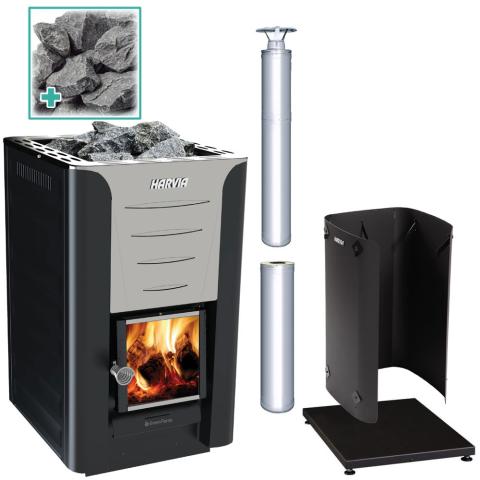

The Harvia M3 package is perfect for when you want it all in one place. This complete package includes: M3 heater, Stones, Protective bedding, 1500MM chimney kit, 1000MM chimney extension, and a protective sheath. The sleek black finish brings class to your sauna and with this package your dream sauna is just one "add to cart" click away.
Features
M3 Heater
- 16.5 kilowatts
- Stainless Steel
- Black color
- Floor installation
- Wood-burning stove
- For sauna rooms 212 cu. ft. to 459 cu. ft.
- Dimensions: 15" W x 18" D x 28" H
- 2-year warranty
Protective Bedding
- Aluminum-zinc coated steel
- Black
- Adjustable feet
- For wood-burning sauna heaters
- Helps protect floors
- Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
- Can be installed on a sloping floor
- 2-year warranty
1500MM Chimney Kit
- Black powder-coated steel
- CE marking
- Mineral wool insulation material
- Mounts in a vertical position
- Works with wood-heated stoves
- Works with smaller fireplaces
- Works with iron-stoves
- Able to be easily extended
- Touch protection is not needed if installed in a sauna
- Soot fire resistant
- Freeze-thaw resistant
- Made in Finland
- 2-year warranty
1000MM Chimney Extension
- Innovative design
- Black powder-coated steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2-year warranty
Protective Sheath
- 3-sided sheath
- Black color
- Reduces safety distance to combustible materials
- 2 year warranty
Stones
- Olivine diabase sauna stones
- Split-Face
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Includes
M3 Heater
- Sauna heater
- Adjustable legs
- Stove door
- Ash box
- Installation and operation manual
- 2-Year warranty
Protective Bedding
- Protective Bedding
- Installation manual
- 2-Year warranty
1500MM Chimney Kit
- Utility box
- Non-insulated smoke pipe
- Rain cap
- Rubber rain flange
- Installation set for rain flange
- Stainless steel lead-through flange for ceiling
- Lead-through insulation and protector
- Installation manual
- 2-Year warranty
1000MM Chimney Extension
- Black chimney extension
- 2-Year warranty
Protective Sheath
- 3-sided sheath
- Installation Manual
- 2-Year warranty
Stones
- 88 lbs of 4" to 6" (10-15 cm) Olivine Split-Face stones
Specifications
| Model | M3 |
|---|---|
| Kilowatt Rating | 16.5 kW |
| Primary Fuel | Wood |
| Minimum Cubic Feet | 211 CF |
| Maximum Cubic Feet | 459 CF |
| Heater Weight | 97 lbs |
| Shipping Weight with Sauna Stones | 163 lbs |
| Width | 15" |
| Depth | 18" |
| Height | 28" |
| Model | WL100 |
|---|---|
| Material | Steel |
| Weight | 23.5 lbs |
| Width | 17.7" (450mm) |
| Depth | 26" (665mm) |
| Height | 2.4"-3" (60-75mm) |
| Model | WHP1500M |
|---|---|
| Material | Black powder coated steel |
| Non-vertical installations | Not Allowed |
| Product Height | 59" (1500mm) |
| Product Diameter | 8-5/8" (220mm) |
| Net Weight | 25 lbs |
| Model | WHP1000M |
|---|---|
| Flexural Strength- tensile strength | 16.4 ft (5m) |
| Non-vertical installations | Not Allowed |
| Wind Load | 6.5 ft (2m) above last support |
| Maximum spacing of lateral supports | 9.8 ft (3m) |
| Weight | 14.8 lbs |
| Diameter | 8.6" (220mm) |
| Height | 39.3" (1000mm) |
| Model | WL450 |
|---|---|
| Weight | 14 lbs |
| Width | 17.91" |
| Depth | 18.89" |
| Height | 31.49" |
Technical
Harvia Wood Burning Stove IOM.pdf
Harvia-WHP1500-IOM.pdf
WHP1000M & 500M Manual.pdf
Harvia-WL450-IOM.pdf
Harvia-WL450-Safety.pdf
