Summit Shallow Depth 24" Wide Built-In All-Refrigerator With Slide-Out Storage Compartment FF19524

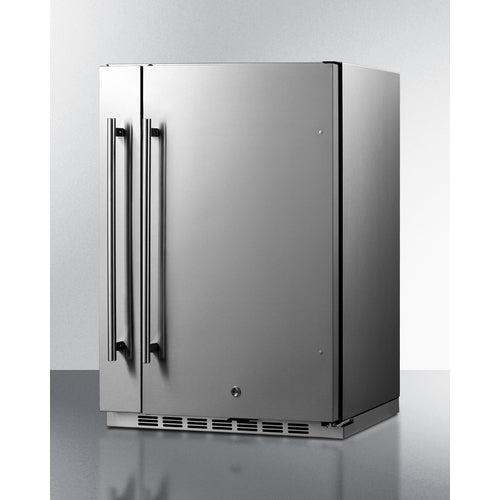

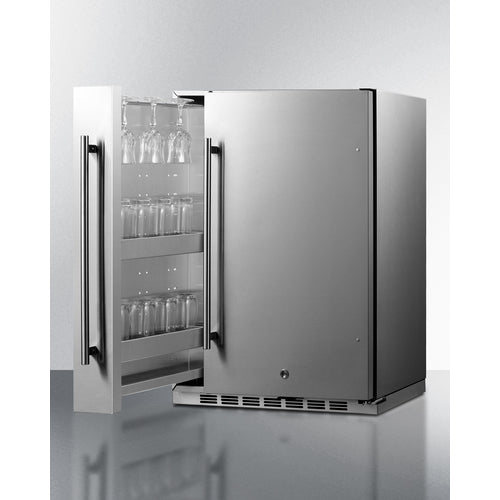

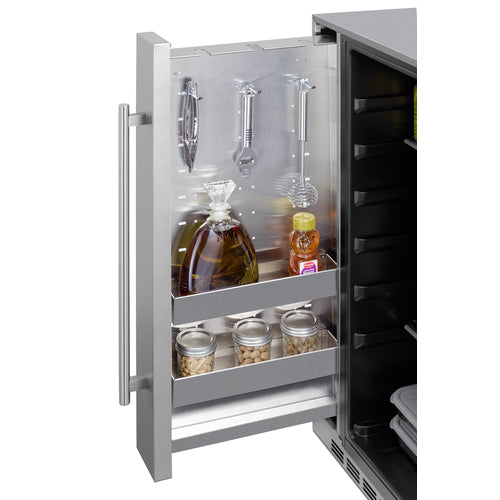

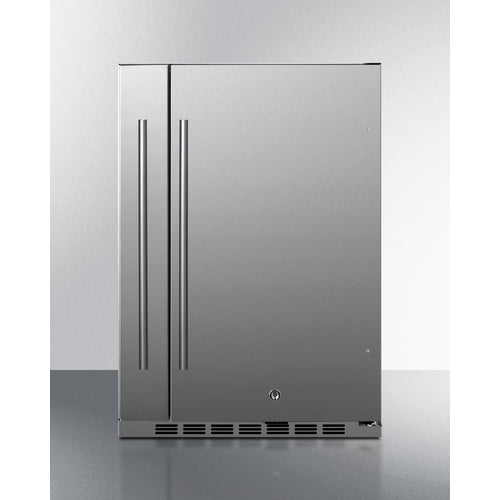

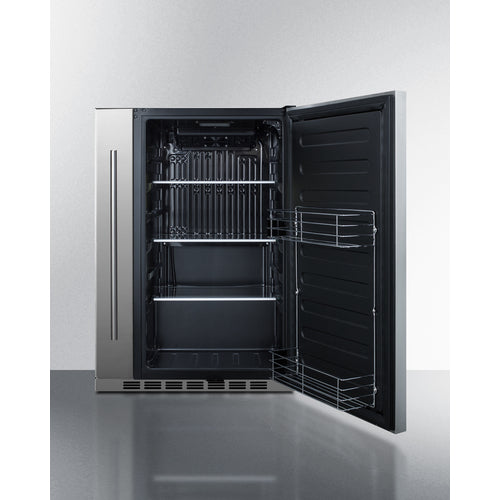

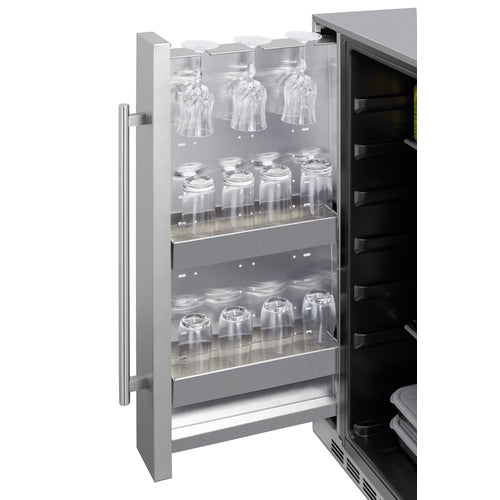

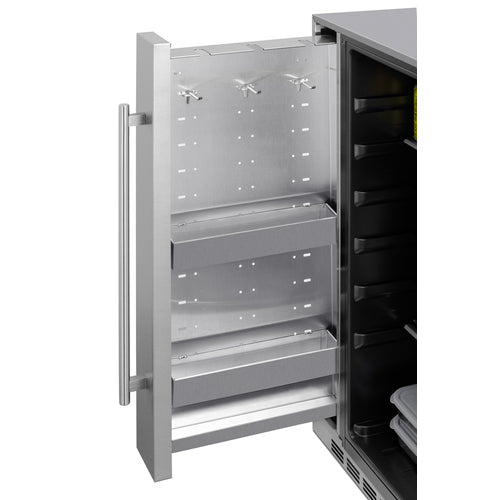

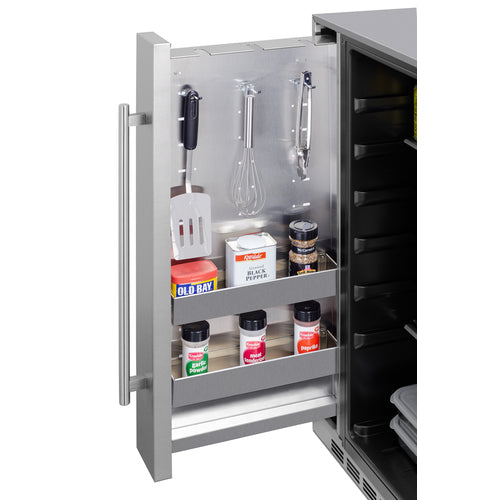

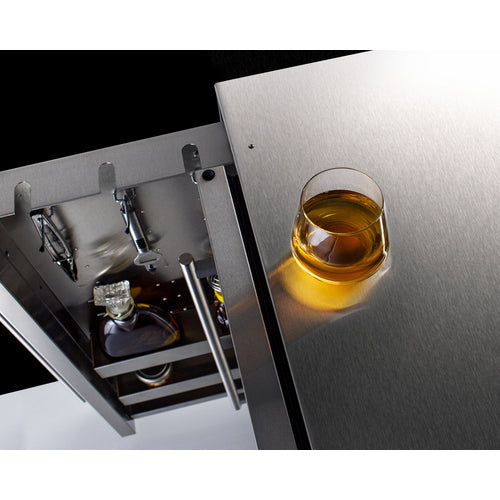

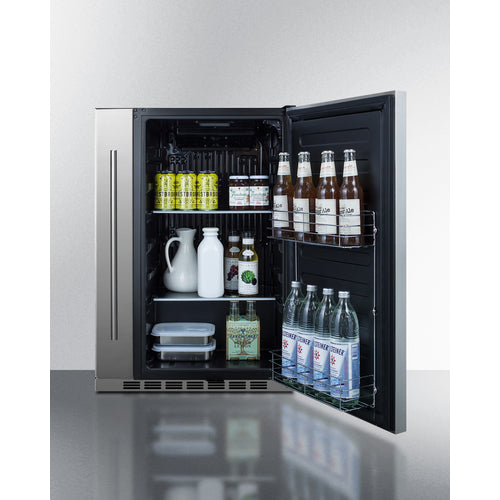

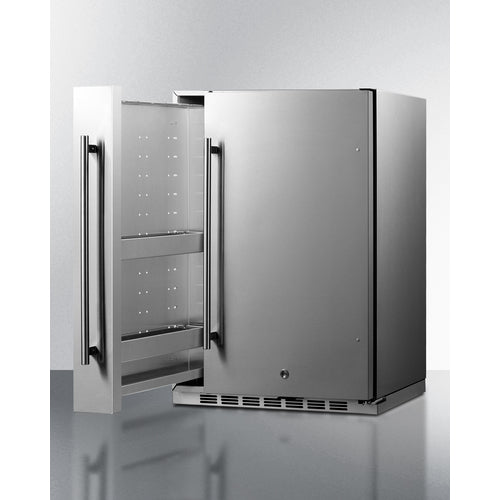

Summit's shallow depth series of built-in undercounter refrigeration includes residential options with pull-out side compartments for added storage convenience in a modern style. The FF19524 is sized at just 24 inches wide and 17.25 inches deep, with a front-breathing design for built-in installation under counters and a fully finished stainless steel wrapped cabinet to also allow freestanding use. The stainless steel refrigerator door and storage drawer front bring elegance to any setting, with pro-style handles to complete the look. A factory-installed lock offers added security in the refrigeration compartment, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Leveling legs keep the unit level on uneven surfaces. For added storage convenience, this unit includes a non-refrigerated pull-out storage compartment in complete stainless steel, with a matching handle to the refrigerator section. The interior features two height adjustable stainless steel full-width shelves providing storage space for non-heat sensitive items such as glassware and sealed, shelf-stable foods including canned goods, dried fruits, crackers, and certain boxed foods like mac and cheese. We include three adjustable two-prong peg hooks that let you hang lighter accessories such as tongs and other cooking utensils. The upper part of the cabinet is slotted, allowing you to suspend slimmer glasses from the ceiling. The refrigerated compartment utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management. With its unique space-saving design and convenient shallow depth fit, the FF19524 is the perfect addition to any home bar or other residential space. For an outdoor version of this unit, see the SPR196OS24.

Overview
Height of Cabinet	34.25" (87 cm)
Width	23.75" (60 cm)
Depth	17.25" (44 cm)
Depth with Handle	19.0" (48 cm)
Depth with door at 90°	35.0" (89 cm)
Capacity	3.13 cu.ft. (89 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	259.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	70.0 lbs. (32 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101078717
Refrigerator Features
Door Swing	RHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.88oz.
High Side PSI	320.0
Low Side PSI	120.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	34 to 50ºF
Sound Level	33.4 dB
Drawer Dimensions
Interior Height 1	29.0" (74 cm)
Interior Width 1	4.25" (11 cm)
Interior Depth 1	12.75" (32 cm)
Dimensions
Interior Height	29.0" (74 cm)
Interior Width	16.0" (41 cm)
Interior Depth	12.75" (32 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	16.0" (41 cm)
Compressor Step Depth	6.25" (16 cm)
